Kompactboy SE 71 Duplex
€0.01 incl. Vat
CALL / EMAIL FOR PRICING
Three Phase / 4 Motor Strengths / 22M to 39M Head Options
The Zehnder Kompactboy SE 71 is a lifting station with 2 motors IP68 certified, with two pumps with cutting blade systems.
The Zehnder Kompactboy SE 71 is available in 4 versions for 4 high level lifting performance. It has 5 entries so it is possible to raise all wastewater even in the most demanding situations.
The station comes with a remote control box as well as audible and visual alarms.
The Zehnder Kompactboy SE 71 is a new unit in the range with twin motor macerator or vortex pumps. The grinder motors are available in 2.1kw or 3.9kw sizes. It is designed for commercial use in heavy-demand applications, as it can handle up to 17 cubic metres per hour. It includes five inlets, allowing connection of several toilets/wash basins/appliances/etc.
TheZehnder Kompactboy SE 71 is easy to install as it stands on the floor and therefore no excavation is needed to place it below ground. It comes with a hard-wired alarm on an externally mounted control box, plus a secondary hard-wired audio/visual alarm with five metre cable, so it can be placed remotely.
Why choose Zehnder Kompactboy SE 71 ?
- Ideal for demanding commercial situations
- Large tank volume (150L)
- Easy to install – no need to excavate
- Two hard-wired alarms and remote management box for ultimate safety
- Can be connected to Building Management System
- Working temperature of 55ºC
- Discharge through 100mm pipework
- Will handle temperatures up to 70ºC for short periods (See Sanicom 1 and Sanicom 2 for higher temperatures and longer periods)
- IP68 rated
- 5 Year Extended Manufacturers Guarantee
Available Accessories*
- Saniflo Descaler – For trouble-free maintenance
The Zehnder Kompactboy SE 71 along with all of our Saniflo Systems and Kinedo Shower and Bath Solutions can be bought online with the reassurance of dealing with Ireland’s official Saniflo and Kinedo agent.
As well as supplying the superb Saniflo and Kinedo ranges at great prices online in Ireland, we also provide:
- Free Nationwide Delivery
- Same Day Dispatch
- Free Saniflo Advice
- All products in stock
- Saniflo Installation
- Saniflo Service
- Saniflo Repair
| Head Height | 22M Head, 25M Head, 35M Head, 39M Head |
|---|
Power supply 400 V
Frequency 50 Hz
Power P1 2.100 W / 3.900 W
Power P2 1.700 W / 3.200 W
Nominal current 3,7 A / 6,5 A
Drive 2800 rpm
Max. flow rate 17,0 m³/h
Head up to 22,0 m / 25,0 m / 35,0 m / 39,0 m

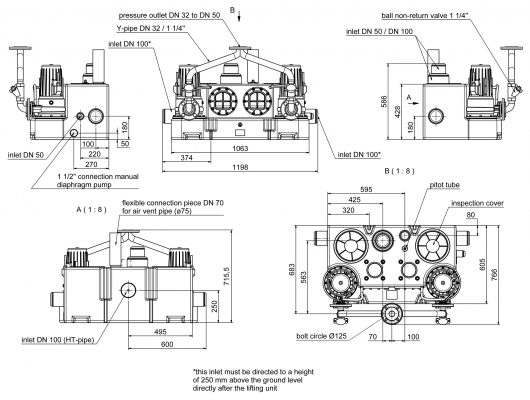

P-dimensions (WxHxL) 780 mm x 1070 mm x 1180 mm
