Kompactboy
€2,095.00 – €2,575.00 incl. Vat
CALL / EMAIL FOR PRICING
Options include – Single / 3 Phase – 8.1m to 15m Head
Inlets – 3*100 horizontal + 1*50/100 on top.

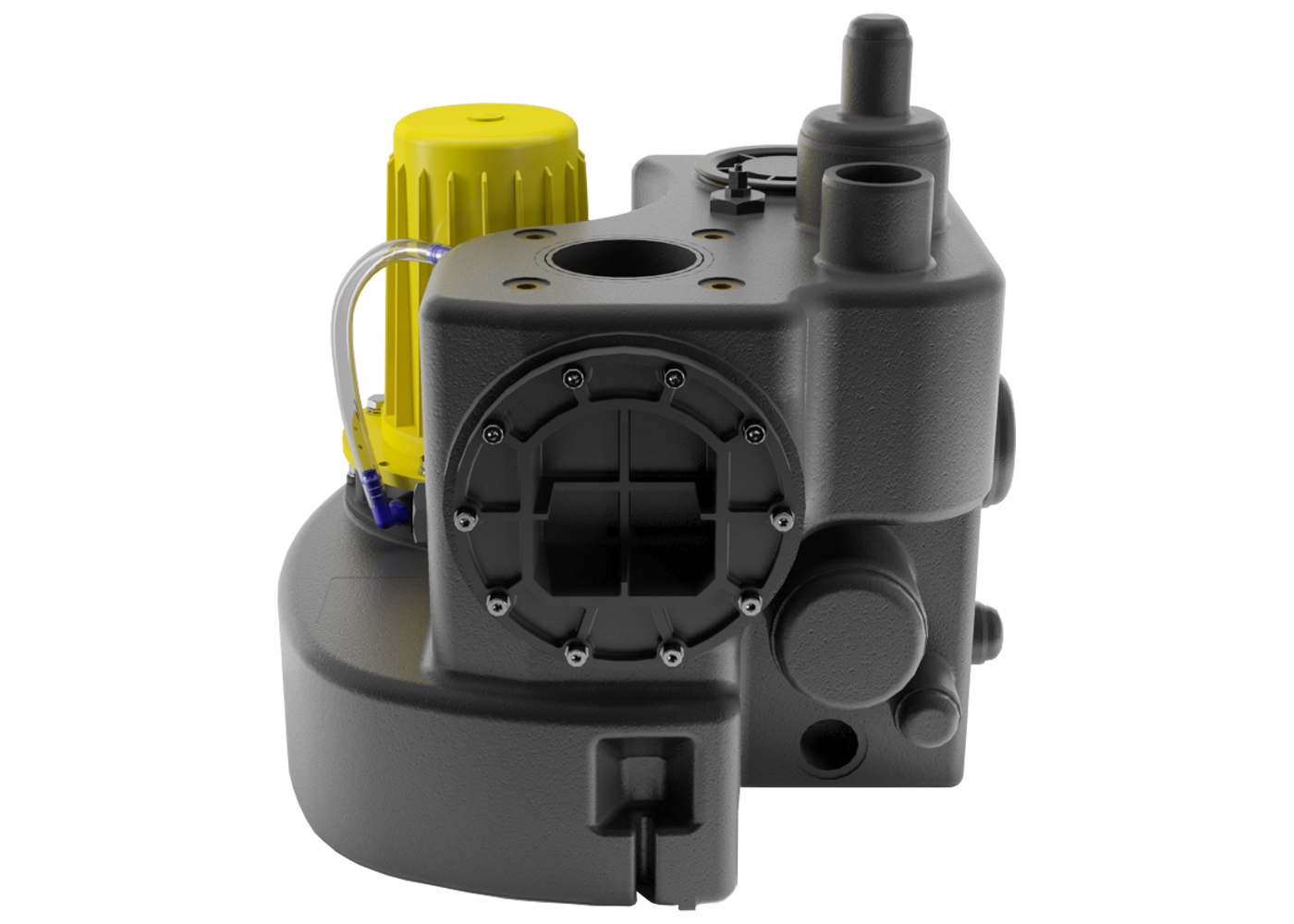

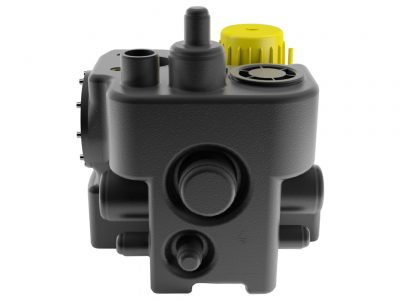

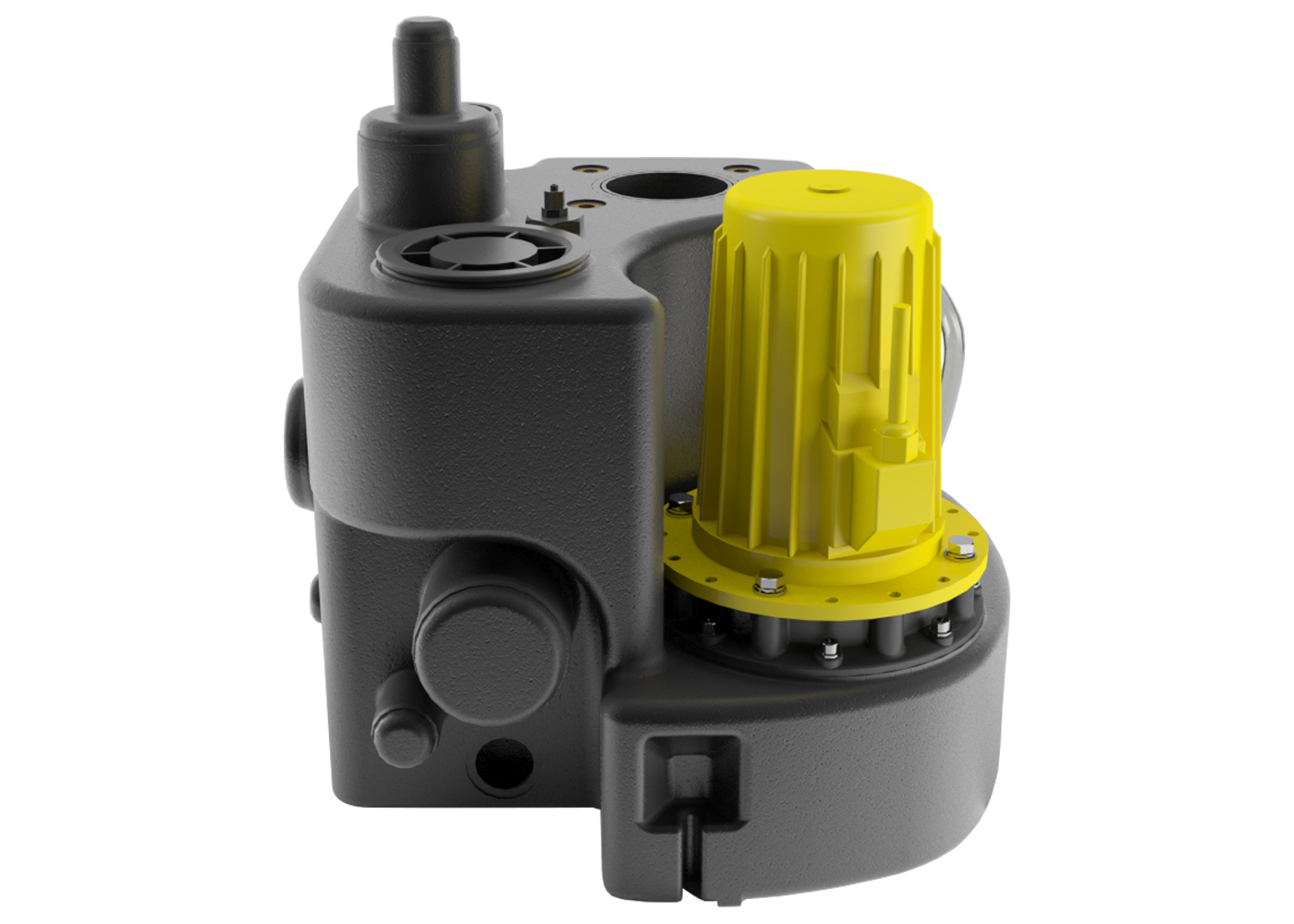

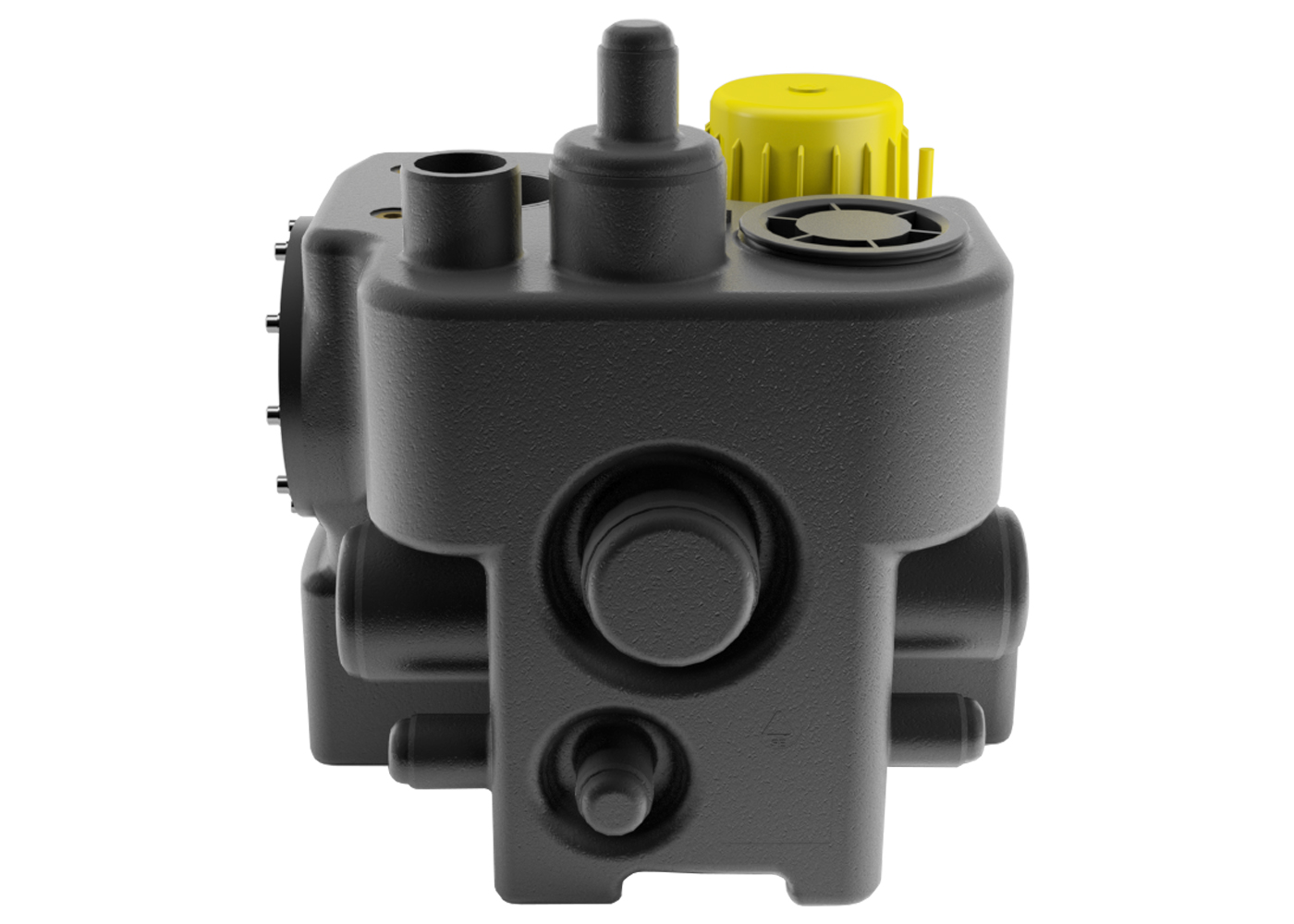

The ZEHNDER Kompactboy is a lifting station with 1 IP68 certified motor, equipped with a high-performance cutting blade system.
The ZEHNDER Kompactboy is available in 5 versions for 4 high level lifting performances. It has 5 entries to ensure it is possible to raise all wastewater even in the most demanding circumstances.
The station comes standard with a remote control box as well as audible and visual alarms.
The ZEHNDER Kompactboy is a new unit in the range with one motor macerator or vortex pump. The motors are available in 4kw, 5.5kw, 6.3kw or 8.7kw sizes. It is designed for commercial use in heavy-demand applications, as it can handle from 120 to 165 cubic metres per hour. It includes five inlets, allowing connection of several toilets/wash basins/appliances/etc.
The ZEHNDER Kompactboy is easy to install as it stands on the floor and therefore no excavation is needed to place it below ground. It comes with a hard-wired alarm on an externally mounted control box, plus a secondary hard-wired audio/visual alarm with five metre cable, so it can be placed remotely.
Why choose ZEHNDER Kompactboy ?
- Ideal for demanding commercial situations
- Large tank volume (55L)
- Large bore vortex pump which can pump away waste without the need to macerate
- Easy to install – no need to excavate
- Two hard-wired alarms and remote management box for ultimate safety
- Can be connected to Building Management System
- Working temperature of 55ºC
- Discharge through 100mm pipework
- Will handle temperatures up to 70ºC for short periods (See Sanicom 1 and Sanicom 2 for higher temperatures and longer periods)
- IP68 rated
- 5 Year Extended Manufacturers Guarantee available
Available Accessories*
- Saniflo Descaler – For trouble-free maintenance
The ZEHNDER Kompactboy along with all of our Saniflo Systems and Kinedo Shower and Bath Solutions can be bought online with the reassurance of dealing with Ireland’s official Saniflo and Kinedo agent.
As well as supplying the superb Saniflo and Kinedo ranges at great prices online in Ireland, we also provide:
- Free Nationwide Delivery
- Same Day Dispatch
- Free Saniflo Advice
- All products in stock
- Saniflo Installation
- Saniflo Service
- Saniflo Repair
| Usage | Commercial Premises, Whole House |
|---|---|
| Voltage | 230 Volts (Single Phase), 400 Volt (3 Phase) |
| Head Height | 8.1M Head, 9.9m Head, 15m Head |
Article number 17750
Power supply 230 V
Frequency 50 Hz
Power P1 2.200 W
Power P2 1.700 W
Nominal current 10,5 A
Drive 2800 rpm
C 60 µF
Max. flow rate 17,0 m³/h
Head up to 22,0 m

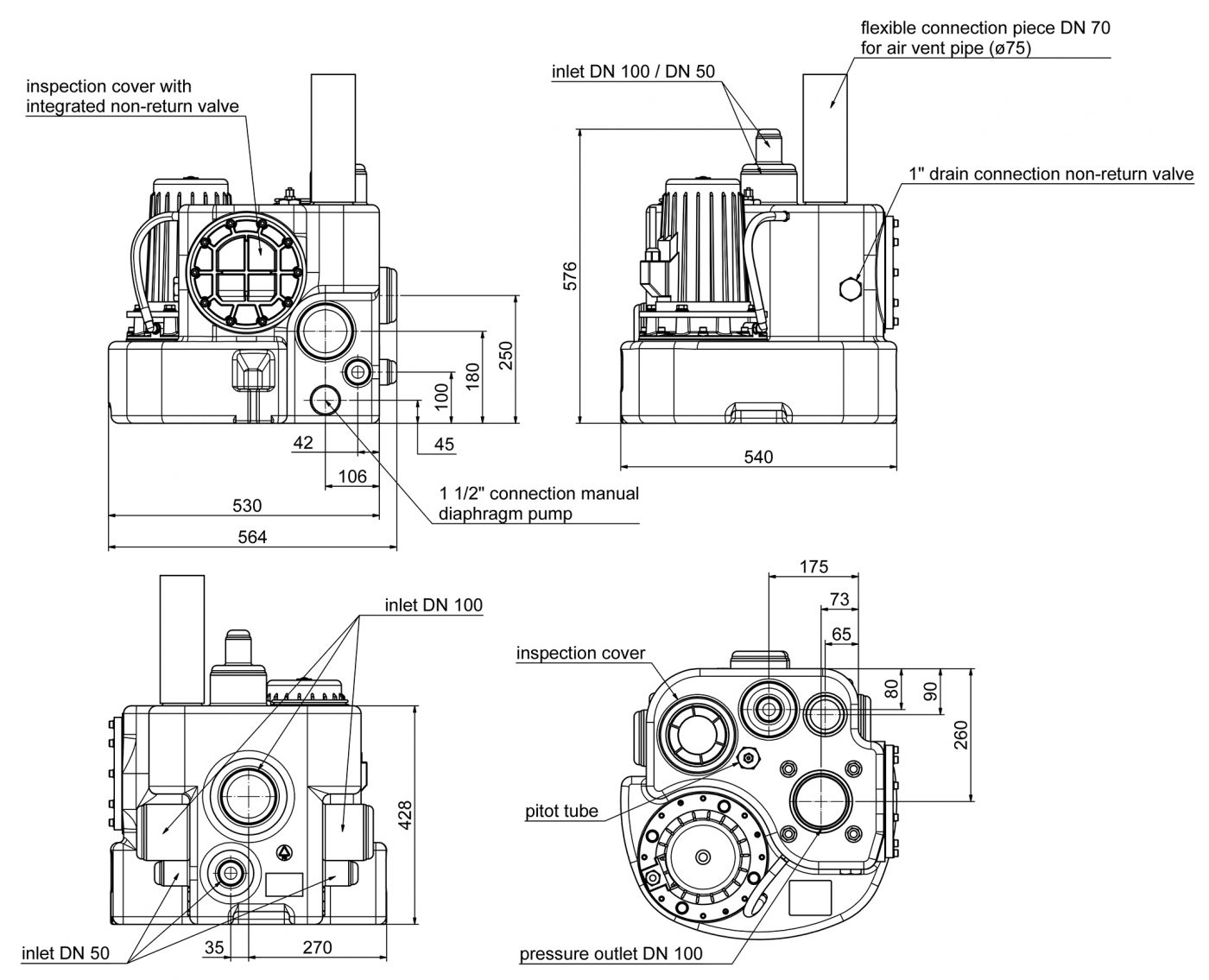

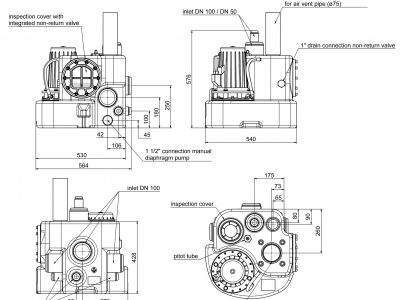

P-dimensions (WxHxL) 580 mm x 600 mm x 790 mm
Article number 17473
Power supply 400 V
Frequency 50 Hz
Power P1 2.100 W
Power P2 1.700 W
Nominal current 3,7 A
Drive 2800 rpm
Max. temperature 55 °C
Max. flow rate 17,0 m³/h
Head up to 25,0 m
P-dimensions (WxHxL) 580 mm x 600 mm x 790 mm
Article number 17474
Power supply 400 V
Frequency 50 Hz
Power P1 3.900 W
Power P2 3.200 W
Nominal current 6,5 A
Drive 2800 rpm
Max. temperature 55 °C
Max. flow rate 17,0 m³/h
Head up to 35,0 m
P-dimensions (WxHxL) 580 mm x 600 mm x 790 mm
Article number 17475
Power supply 400 V
Frequency 50 Hz
Power P1 3.900 W
Power P2 3.200 W
Nominal current 6,5 A
Drive 2800 rpm
Max. temperature 55 °C
Max. flow rate 17,0 m³/h
Head up to 39,0 m
P-dimensions (WxHxL) 580 mm x 600 mm x 790 mm
